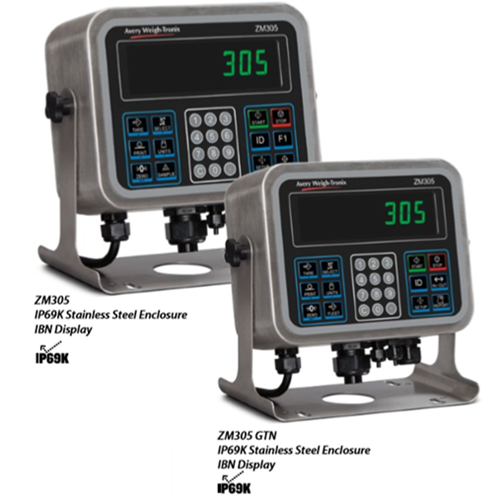

The ZM305 GTN Inbound-Outbound indicator offers outstanding value for use with truck scales. Some of the features include IP69K SS enclosure, supports up to 14 load cells, store up to 1000 truck records internally, Fleet weighing (stored tare so only weigh out) and In/Out weighing standard. The ZM305 also allows you to output the data to a standard USB stick to export into excel. With 2 serial ports, USB host, Ethernet IP and Modbus TCP, and 3 inputs/3outputs the ZM305 GNT series is an outstanding value for truck scales .
ZM305 Series
Description
DESCRIPTION
These high performance, multi-function indicators give you the flexibility required to suit your applications. Suitable for the office, dusty, wet or high pressure and heavy washdown environments, the ZM305 series will analyze, store, display and transmit data across a range of technology methods to meet your specific installation.
General Specifications
Operating Applications
ZM305 Standard General weighing, in-motion weighing, accumulation, check weighing, counting, peak measurement, batching and remote display
ZM305 GTN Inbound-Outbound, 1000 Fleet In/Out transaction storage and calculations
Unit of Measure
Six, configurable (Pounds, Kilograms, Ounce, Gram, Pound/Ounce, Custom), up to four can be active
Capacity Selections
9,999,999 with decimal located zero to five places
Incremental Selections
Multiples and sub-multiples of 1, 2, 5
Programmable Selections
Zero range, motion detection, automatic zero tracking, five point linearization
Time and Date
Battery backed up time/date/year (12 hr AM/PM or 24 hour format)
Calibration
Two to five points stored
Analog to Digital Measurement Rate
80 Hz
Internal Resolution
53,687,100 counts per mV/V per second
Digital Filtering
Harmonizer filtering with adaptable constant and threshold
Self Diagnostics
Display, keys, inputs, outputs, serial port, Scale A to D, USB port and option cards
Dynamic Weighing
Minimum nominal weigh time 100 milliseconds, recommended minimum three hundred milliseconds.
