The EZ Mount Series weigh module

The EZ Mount Series weigh module is designed to provide superior performance in a wide range of process control and vessel weighing applications.  The double ended shear beam design provides accuracy and dependability at a cost effective price

  • Available capacities: 5,000 lb up to 60,000 lbs
  • Available in mild steel, stainless steel and hermetically sealed
  • Sliding pin design compensates for thermal expansion
  • Self checking
  • NTEP approved (mild steel and stainless), FM approved

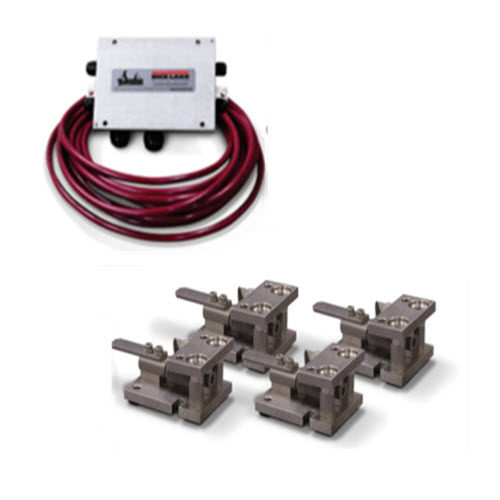

  • Available in 3 or 4 cell kits (cells with stands, summing box and 25’ cable)
Category:

Description

The EZ Mount 1 Series weigh module is designed to provide superior performance in a wide range of process control and vessel weighing applications including batching, blending and bulk inventory management. Each assembly features a temperature-compensating and self-checking sliding pin design, making it ideal for indoor or outdoor applications. The EZ Mount 1 is easy to install and can be bolted directly to the vessel and foundation. It is available with mild steel or stainless steel construction in capacities from 5000 lbs to 250,000 lbs. For a complete solution, kits that include load cells, mounting assemblies, a junction box and cable are available. To complete your system, Rice Lake Weighing Systems also offers digital indicators and controllers for
setpoint filling, batching and unloading

Standard Features:

  • Capacities per assembly: 5000 lb – 250,000 lb
  • RL70000 NTEP-certified, FM approved load cells in capacities from 5000 lb to 200,000 lb for enhanced performance
  • Unique sliding pin design compensates for thermal expansion/contraction
  • Self-checking in all directions, including lift-off protection, eliminates external hardware
  • Easy load cell removal minimizes maintenance costs
  • Low profile, bolt-in-place design allows mounting directly to tank and floor
  • Two-part epoxy-painted mild steel construction stands up to a variety of environments

Options:

  • Stainless steel construction
  • RL70000SS stainless steel, FM approved load cell
  • RL71000HE stainless steel, FM approved, hermetically-sealed load cell (5000-60,000 lb)
  • Revere Transducers Inc. 5103 tool steel load cell
  • Revere Transducers Inc. 9103 stainless steel load cell
